รายละเอียดสินค้า:
|
| Length: | 6-12meter | type: | Seamless pipe |
|---|---|---|---|
| OD: | 10-325mm | thickness: | SCH10 - SCH 160 |
| company type: | factory and trading | Grade: | 304,304L,310S,316L,321,904L,S32760.etc |
Quick detail
316L stainless steel seamless tube
grade: 304/304l.316;316L,310S,321,904L
OD: 1/8" to 10"
Thickness :SCH10-SCH160
Length: 6m-11m
Description:
|
Outside diameter |
4.75-630mm |
|
Wall thickness |
0.5-55mm |
|
Material |
201, 202, 301, 302, 303, 304L, 304H, 309S, 309H, 310S, 316, 316L, 317 |
|
Surface |
Pickled/polished (2B surface/mirror surface) |
|
Length |
SPECIFIC OR AT RANDOM as required |
|
Tolerance |
Outer diameter ≤ 1.0% Thickness: ≤ +10% Length: ≤2mm
|
|
Technical flow |
Cold draw/cold rolled |
|
Producing machine |
Rolling machines, Cold-drawn machines, annealing Furnace, Pickling sinks, Cutting machines, End preparation machines, ect. |
|
Testing machine |
Ultrasonic testing machine, Eddy current testing machine, Mechanics test, Direct-reading Spectrum Instrument, Inter-granular corrosion testing lab, Hydraulic testing machine, ect. |
|
Packing |
Sea-worthy packing with plastic cap to protect both ends, and plastic bag wrapped outside the pipe, then Bundles to be covered by polythene & strapped securely. If require, then pack into wooden box.
|
|
Payment |
TT , irrevocable L/C at sight |
|
Delivery time |
About 30days, depend on quantity. |
Applications
Specifications
Chemical Compostion
|
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Ti |
|
0.08 |
<=1.00 |
<=2.00 |
<=0.035 |
<=0.03 |
17.00-19.00 |
9.0-12.0 |
2.0-3.0 |
≥5×C% |
Mechanical properties
| Tensile strength of sigma b (MPa) : p. 520 |
| Conditions to yield strength sigma (0.2 MPa) : p. 205 |
| Elongation delta (%) : 40 or higher |
| Reduction of area bits (%) : 50 or more |
| Hardness: 187 hb or less; 90 HRB or less; 200 hv or less |
Packing details
we pack our pipe by waterproof paper , then we put these goods into wooden box. the length of our pipe is 6-11m, so we advice load our pipe buy 40GP container.
Here is the packing picture of us

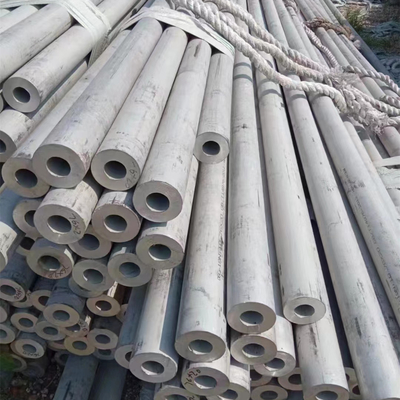

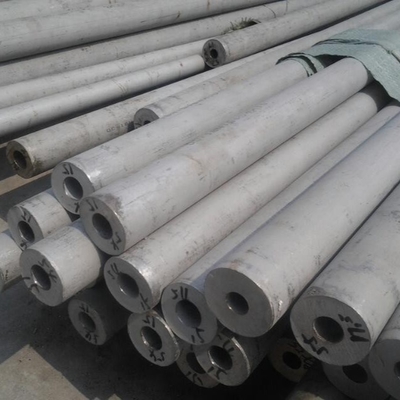

Photos of our products
